Electrex World Electronic Ignition & Lighting Kit Triumph For Tiger Cub 6v - 12v

MADE IN UK

For greater energy efficiency we recommend using LED bulbs

Simple to fit

Suitable with 6v and 12v systems

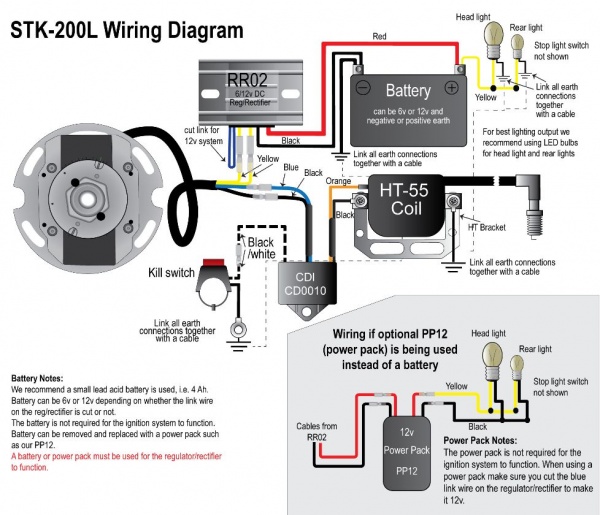

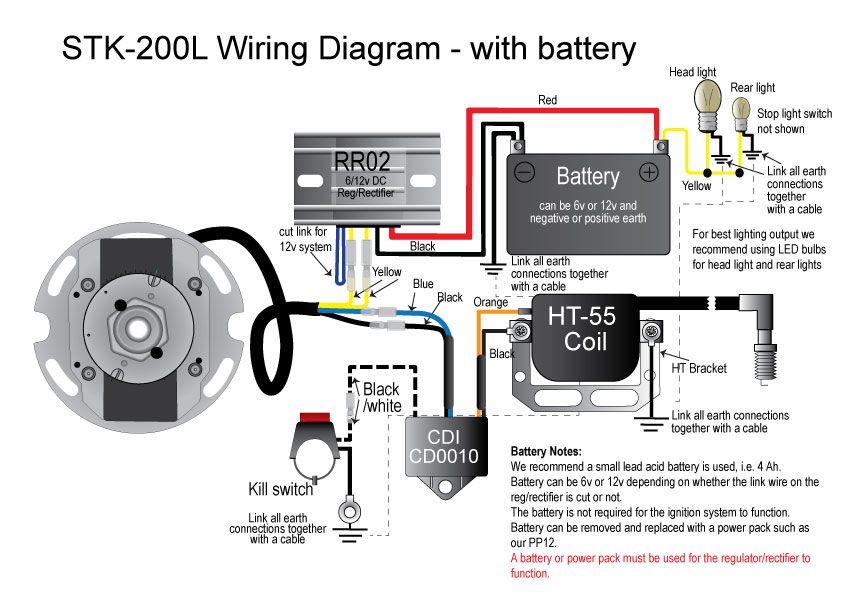

Comes with detailed fitting instructions and diagram

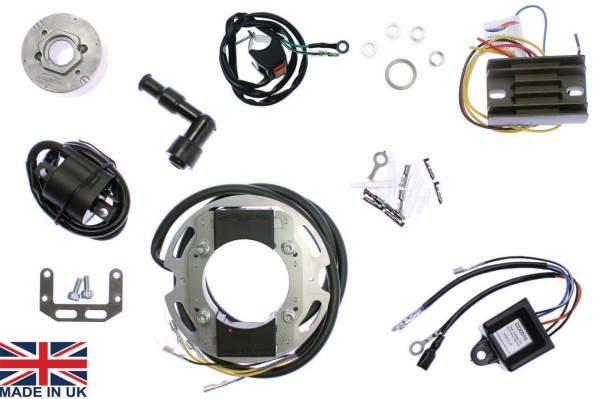

Picture of components supplied in 2nd picture

Self generating cdi ignition system located in place of the original Wipac alternator in the LH cover

The stator is designed for operation within the engine environment

Ignition advance is electronic which gives excellent performance throughout the rev range and is specifically made for Tiger Cub trials engines

Easy starting and maintenance free

Manufactured in the UK

PLEASE NOTE:

All models of Tiger Cub have a 5/8" crankshaft to mount the alternator rotor. Models after 1962 have a 3/4" bore

So for the pre-1962 models you will require an adaptor sleeve to enable the STK-200 kit to fit - Part No: ADP200 this part is to order
